“S” Shaped Pedestrian Bridge

iconic s shaped bridge

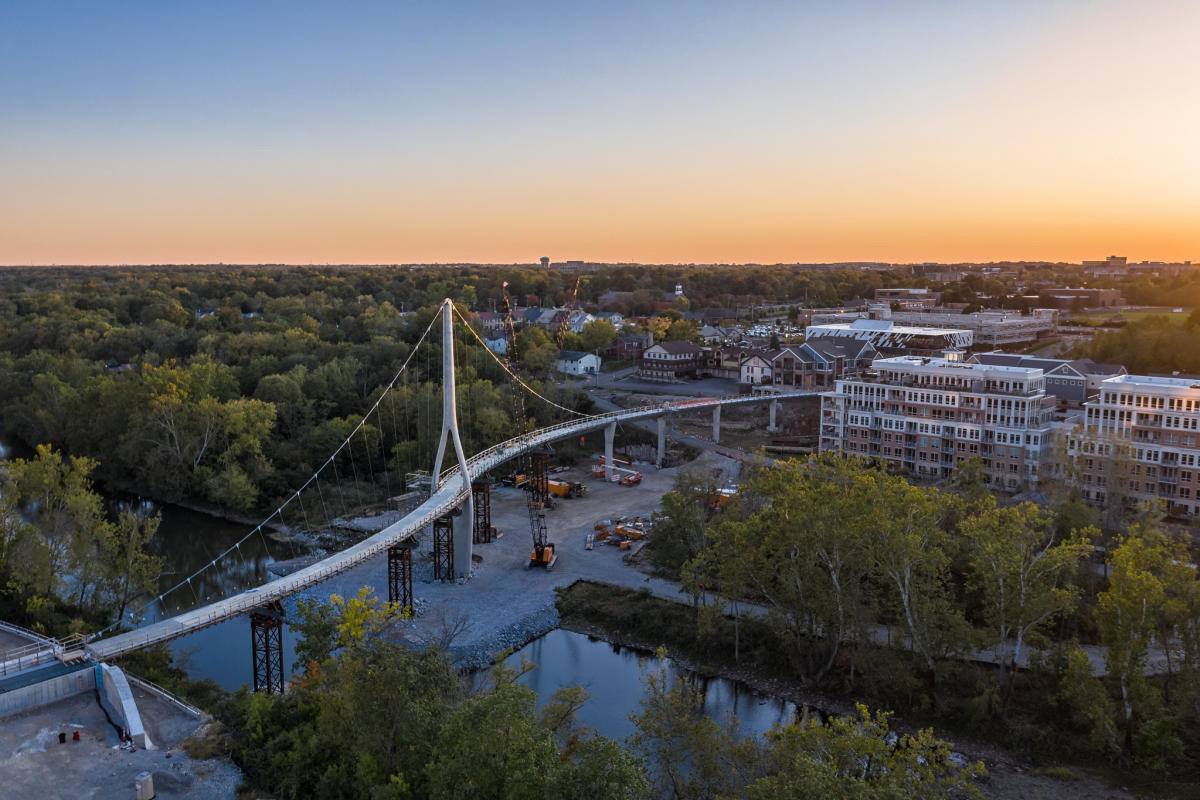

This bridge is a 760-foot long, cable-stayed state-of-the-art “S” shaped pedestrian bridge and the largest of its kind in the world. The bridge was constructed as part of the City of Dublin’s Bridge Street Development Program and completed in 2015. Our team provided geotechnical services including drilling and foundation recommendations. The structure includes four supported spans and one cable-stayed span. The cable-stayed span has a central pier, or pylon, located at the western bank of the Scioto River with cables anchored into the bedrock on the west side. Foundation support includes both spread and drilled shafts bearing in bedrock.
